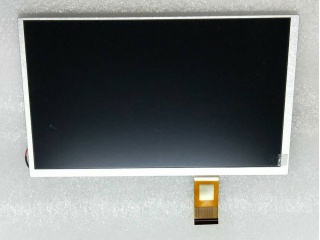

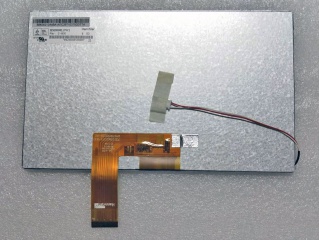

| Uimhir Pháirt | HSD090LFW1-B00 |
| Branda | HannStar |
| Méid | 9.0 |
| Iarratas | Automotive Display |
| Rún | 1024×600 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 800:1 |
| Dathanna | 262K/16.2M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda | HannStar |
| Mionsamhail | HSD090LFW1-B00 |
| méid trasnánach | 9.0 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 1024(RGB)×600 [WSVGA] 132PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 196.608(H)×114.15(V) mm |
| imlíne dim. | 211.1(H)×126.5(V) ×6(D) mm |
| limistéar bezel | 200.01(H)×117.55(V) mm |
| cóireáil | Glare (Haze 0%) |
| luminance | 450 cd/m² (Typ.) |
| cóimheas codarsnachta | 800:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 17/18 (Typ.)(Tr/Td) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| modh oibriúcháin | IPS Pro, Normally Black, Transmissive |
| dath tacaíochta | 262K/16.2M 50% NTSC |
| foinse solais | WLED , 150K hours , W/O Driver |
| meáchan | 230g (Typ.) |
| deartha le haghaidh | Automotive Display |
| ráta fhráma | 60Hz |
| painéal tadhaill | Without |
| cineál comhéadan | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| soláthar leictreachas | 3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| timpeallacht | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| A090PAN01.0 | AUO | 9.0 | 900×1440 |
| A090VW01 V3 | AUO | 9.0 | 800×480 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| CLAA090NA02CW | CPT | 9.0 | 1024×600 |
| CLAA090NA06CW | CPT | 9.0 | 1024×600 |
| DLC0900DIG-1 | Other | 9.0 | 800×480 |
| NL8048BC24-12 | NLT | 9.0 | 800×480 |
| NL8048BC24-14NH | NLT | 9.0 | 800×480 |
| ZE090NA-01B | Innolux | 9.0 | 1280×800 |
