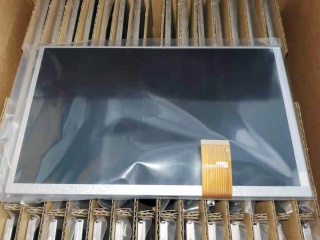

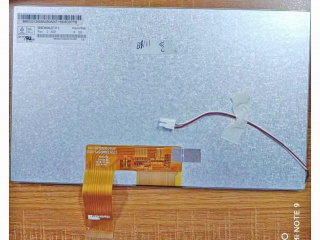

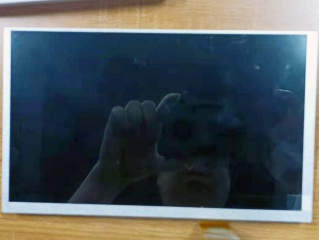

| Uimhir Pháirt | HSD090JFW1-A02 |
| Branda | HannStar |
| Méid | 9.0 |
| Iarratas | Automotive Display |
| Rún | 1024×600 |
| Comhdhéanamh | LCM, a-Si TFT-LCD |
| Gile | |
| CR | 800:1 |
| Dathanna | 16.2M |
| Cúlsolas | 3S13P |
| Comhéadan | LVDS |
| monaróir | HannStar |
| ainm samhail | HSD090JFW1-A02 |
| méid scáileáin | 9.0 inch |
| cineál scáileáin | LCM, a-Si TFT-LCD |
| uimhir picteilín | 1024(RGB)×600 (WSVGA) 132PPI |
| socrú | RGB Vertical Stripe |
| limistéar gníomhach(mm) | 196.608 × 114.15 (H×V) |
| imlíne (mm) | 211.1 × 126.5 × 6 (H×V×D) |
| limistéar bezel (mm) | 200.01 × 117.55 (H×V) |
| cóireáil | Antiglare, Hard coating (3H) |
| luminance | 500 cd/m² (Typ.) |
| cóimheas codarsnachta | 800 : 1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| freagra | 17/18 (Typ.)(Tr/Td) ms |
| radharc maith ag | Symmetry |
| modh oibre | IPS Pro, Normally Black, Transmissive |
| doimhneacht dath | 16.2M 50% NTSC |
| cúlsolas | 3S13P WLED , 15K hours , No Driver |
| mais | 226g (Typ.) |
| a úsáidtear le haghaidh | Automotive Display |
| ráta athnuachana | 60Hz |
| scáileán tadhaill | Without |
| cineál comhartha | LVDS (1 ch, 8-bit) , FPC 40 pins |
| soláthar voltais | 3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| uas. rátálacha | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²) |
