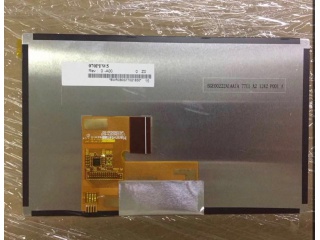

| Uimhir Pháirt | HSD070PFW5-A00 |
| Branda | HannStar |
| Méid | 7.0 |
| Iarratas | Pad & Tablet |
| Rún | 1024×600 |
| Comhdhéanamh | LCM , a-Si TFT-LCD |
| Gile | |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | 3S7P |
| Comhéadan | MIPI |
| monaróir | HannStar |
| ainm samhail | HSD070PFW5-A00 |
| méid scáileáin | 7.0 inch |
| cineál scáileáin | LCM , a-Si TFT-LCD |
| uimhir picteilín | 1024(RGB)×600 (WSVGA) 169PPI |
| socrú | RGB Vertical Stripe |
| limistéar gníomhach(mm) | 153.6 × 90 (H×V) |
| imlíne (mm) | 161.16 × 100.97 × 5.04 (H×V×D) |
| limistéar bezel (mm) | - |
| cóireáil | Hard coating |
| luminance | 550 cd/m² (Typ.) |
| cóimheas codarsnachta | 1000 : 1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| freagra | 13/15 (Typ.)(Tr/Td) ms |
| radharc maith ag | Symmetry |
| modh oibre | IPS Pro, Normally Black, Transmissive |
| doimhneacht dath | 16.7M 50% NTSC |
| cúlsolas | 3S7P WLED , 10K hours , With LED Driver |
| mais | 75.0/85.0g (Typ./Max.) |
| a úsáidtear le haghaidh | Pad & Tablet |
| ráta athnuachana | 60Hz |
| scáileán tadhaill | Without |
| cineál comhartha | MIPI (4 data lanes) , 40 pins Connector |
| soláthar voltais | 1.8/3.3/10.7/17/-10V (Typ.)(VDD1/VDD2/AVDD/VGH/VGL) |
| uas. rátálacha | Storage Temp.: -20 ~ 65 °C Operating Temp.: -10 ~ 60 °C |
