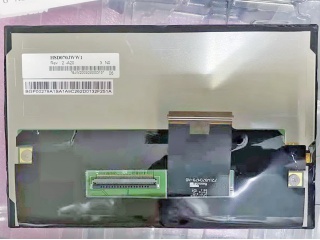

| Uimhir Pháirt | HSD070JWW1-A20 |
| Branda | HannStar |
| Méid | 7.0 |
| Iarratas | Automotive Display |
| Rún | 1280×768 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | HannStar |
| méid an phainéil | 7.0" |
| taifeach | 1280(RGB)×768, WXGA, 213PPI |
| limistéar taispeána | 152.448(W)×91.4688(H) mm |
| gile | - |
| uillinn féachana | - |
| radharc is fearr ar | Symmetry |
| dathanna a thaispeáint | 16.7M |
| minicíocht | 60Hz |
| meáchan painéal | - |
| comhéadan comhartha | LVDS (1 ch, 8-bit) + SPI , 60 pins FPC |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| múnla painéil | HSD070JWW1-A20 |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | - |
| cóimheas codarsnachta | 1000:1 (Min.) (TM) |
| mód taispeána | IPS Pro, Normally Black, Transmissive |
| am freagartha | 25 (Max.)(Tr+Td) |
| cineál lampa | WLED |
| scáileán tadhaill | - |
| iarratas | Automotive Display |
| A070VW05 V2 | AUO | 7.0 | 800×480 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| C070VW04 V0 | AUO | 7.0 | 800×480 |
| LQ7BW566AH | SHARP | 7.0 | 480×234 |
| LTA070B511F | TOSHIBA | 7.0 | 800×480 |
| N070ICG-LD1 | Innolux | 7.0 | 1280×800 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
| TX18D37VM0ARA | KOE | 7.0 | 800×480 |
| VVX07H005A10 | Panasonic | 7.0 | 800×1280 |
