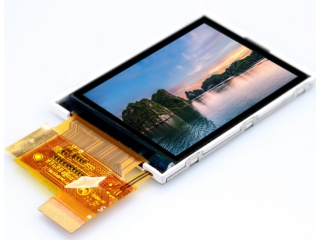

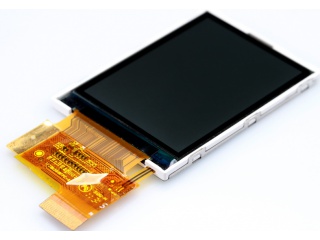

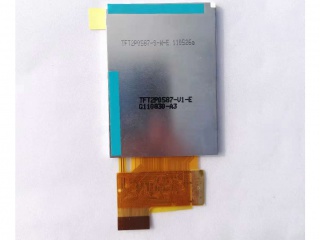

| Uimhir Pháirt | H220VA01 |
| Branda | AUO |
| Méid | 2.2 |
| Iarratas | Mobile Phone |
| Rún | 240×320 |
| Comhdhéanamh | LCM , a-Si TFT-LCD |
| Gile | |
| CR | 75:19:1 |
| Dathanna | 262K |
| Cúlsolas | 4S1P |
| Comhéadan | Parallel |
| monaróir | AUO |
| méid scáileáin | 2.2 inch |
| uimhir picteilín | 240(RGB)×320 (QVGA) 180PPI |
| limistéar gníomhach(mm) | 33.84 × 45.12 (H×V) |
| limistéar bezel (mm) | 35.4 × 46.92 (H×V) |
| luminance | 100 cd/m² (Typ.) |
| uillinn féachana | 47/28/30/80 (Typ.)(CR≥10) |
| radharc maith ag | 6 o'clock |
| doimhneacht dath | 262K 42% NTSC |
| mais | - |
| ráta athnuachana | - |
| cineál comhartha | Parallel RGB (1 ch, 6-bit) + SPI , 39 pins FPC |
| soláthar voltais | 2.8V (Typ.) |
| uas. rátálacha | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| ainm samhail | H220VA01 |
| cineál scáileáin | LCM , a-Si TFT-LCD |
| socrú | RGB Vertical Stripe |
| imlíne (mm) | 40.6 × 56.66 × 3.11 (H×V×D) |
| cóireáil | - |
| cóimheas codarsnachta | 75 : 1 (Typ.) (TM) 9:1 (Typ.) (RF) |
| freagra | 29 (Typ.)(Tr+Td) ms |
| modh oibre | TN, Normally White, Transflective |
| cúlsolas | 4S1P WLED , No Driver |
| a úsáidtear le haghaidh | Mobile Phone |
| scáileán tadhaill | Without |
| AM-240320-022F | Other | 2.2 | 240×320 |
| DLC0220BMG | Other | 2.2 | 240×320 |
| DLC0220KZG | Other | 2.2 | 320×320 |
| HGS128321-B-EH-LV | Other | 2.2 | 128×32 |
| LMS220GF08 | Samsung | 2.2 | 240×320 |
| LS022Q8UD04 | SHARP | 2.2 | 240×320 |
| LTS220QC-F0J | Samsung | 2.2 | 176×220 |
| SG12232A | Other | 2.2 | 122×32 |
| TM022GDH11 | Tianma | 2.2 | 176×220 |
| TM022HDHT1-00 | Tianma | 2.2 | 240×320 |
