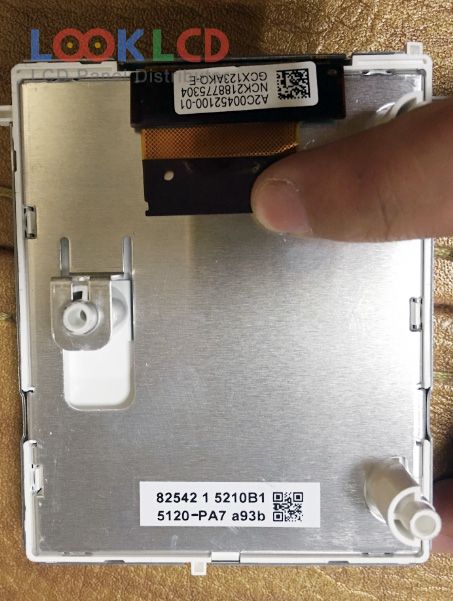

| Uimhir Pháirt | GCX123AKQ-E |
| Branda | JDI |
| Méid | 3.5 |
| Iarratas | CNS |
| Rún | 240×320 |
| Comhdhéanamh | LCM |
| Gile | 620 |
| CR | 900:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | TTL |
| branda painéil | JDI |
| múnla painéil | GCX123AKQ-E |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 3.5 inch |
| taifeach | 240(RGB)×320 , QVGA |
| mód taispeána | IPS, Normally Black, Transmissive |
| limistéar gníomhach | 53.28×71.04 mm |
| imlíne | 81.6×95.57×25.3 mm |
| dromchla | |
| gile | 620 cd/m² (Typ.) |
| cóimheas codarsnachta | 900:1 (Typ.) |
| dathanna a thaispeáint | 16.7M (8-bit), CIE193165% |
| am freagartha | 53 (Max.)(Tr+Td) |
| uillinn féachana | |
| minicíocht | 60Hz |
| cineál lampa | 2S2PWLEDWithout Driver |
| comhéadan comhartha | Parallel RGB (1 ch, 8-bit) + SPI, 50 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | CNS |
