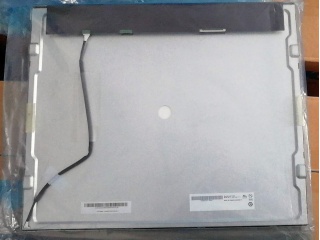

| Uimhir Pháirt | G190EG02 V104 |
| Branda | AUO |
| Méid | 19.0 |
| Iarratas | Industrial Medical I |
| Rún | 1280×1024 |
| Comhdhéanamh | LCM , a-Si TFT-LCD |
| Gile | |
| CR | 2000:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| monaróir | AUO |
| méid scáileáin | 19.0 inch |
| uimhir picteilín | 1280(RGB)×1024 (SXGA) 86PPI |
| limistéar gníomhach(mm) | 376.32 × 301.056 (H×V) |
| limistéar bezel (mm) | 380.32 × 305.06 (H×V) |
| luminance | 350 cd/m² (Typ.) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| radharc maith ag | Symmetry |
| doimhneacht dath | 16.7M 70% NTSC |
| mais | 1.74Kgs (Typ.) |
| ráta athnuachana | 60Hz |
| cineál comhartha | LVDS (2 ch, 8-bit) , 30 pins Connector |
| soláthar voltais | 5.0V (Typ.) |
| uas. rátálacha | Storage Temp.: -20 ~ 70 °C Operating Temp.: -15 ~ 70 °C |
| ainm samhail | G190EG02 V104 |
| cineál scáileáin | LCM , a-Si TFT-LCD |
| socrú | RGB Vertical Stripe |
| imlíne (mm) | 396 × 324 × 15.8 (H×V×D) |
| cóireáil | Antiglare |
| cóimheas codarsnachta | 2000 : 1 (Typ.) (TM) |
| freagra | 15/5 (Typ.)(Tr/Td) ms |
| modh oibre | MVA, Normally Black, Transmissive |
| cúlsolas | WLED , 50K hours , With LED Driver |
| a úsáidtear le haghaidh | Industrial Medical Imaging |
| scáileán tadhaill | Without |
