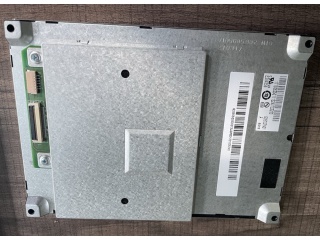

| Uimhir Pháirt | G057QTN01.4 |
| Branda | AUO |
| Méid | 5.7 |
| Iarratas | Industrial |
| Rún | 320×240 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 700:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | CMOS |
| branda painéil | AUO |
| méid an phainéil | 5.7" |
| taifeach | 320(RGB)×240, QVGA, 70PPI |
| limistéar taispeána | 115.2(W)×86.4(H) mm |
| gile | 500 cd/m² (Typ.) |
| uillinn féachana | 80/80/70/70 (Typ.)(CR≥10) |
| radharc is fearr ar | - |
| dathanna a thaispeáint | 262K |
| minicíocht | 60Hz |
| meáchan painéal | - |
| comhéadan comhartha | CMOS (1 ch, 6-bit) |
| timpeallacht | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| múnla painéil | G057QTN01.4 |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | - |
| cóimheas codarsnachta | 700:1 (Typ.) (TM) |
| mód taispeána | TN, Normally White, Transmissive |
| am freagartha | 15/10 (Typ.)(Tr/Td) |
| cineál lampa | WLED , 75K hours |
| scáileán tadhaill | Without |
| iarratas | Industrial |
| AA057VF12 | Mitsubishi | 5.7 | 640×480 |
| CLAA057VC01CW | CPT | 5.7 | 640×480 |
| EL320.240.36 ET CC | Lumineq | 5.7 | 320×240 |
| G057QN01 V0 | AUO | 5.7 | 320×240 |
| G057QN01 V1 | AUO | 5.7 | 320×240 |
| G057QN01 V2 | AUO | 5.7 | 320×240 |
| G057QTN01.1 | AUO | 5.7 | 320×240 |
| KCG057QV1DB-G56 | Kyocera | 5.7 | 320×240 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| NL6448BC18-06F | NLT | 5.7 | 640×480 |
