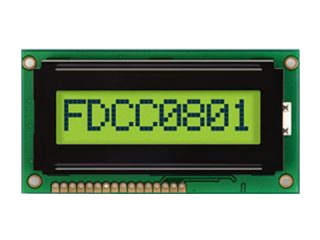

| Uimhir Pháirt | FDCC0801A-FLYYBW-51LK |
| Branda | Fordata |
| Méid | 2.3 |
| Iarratas | Instruments & Meters |
| Rún | 8×13 |
| Comhdhéanamh | STN-LCD , LCM |
| Gile | |
| CR | 6:1 |
| Dathanna | Monochrome |
| Cúlsolas | YG-LED |
| Comhéadan | 8-bit |
| branda painéil | Fordata |
| méid an phainéil | 2.3" |
| formáid taispeána | 8 characters × 1 lines, 3PPI |
| méid carachtar | 6.45×10.75(W×H) mm |
| limistéar taispeána | 56.5(W)×10.75(H) mm |
| méid imlíne | 84(W)×44(H) ×13.5(D) mm |
| gile | - |
| uillinn féachana | - |
| radharc is fearr ar | 6 o'clock |
| dathanna a thaispeáint | Monochrome |
| minicíocht | - |
| meáchan painéal | - |
| comhéadan comhartha | 8-bit parallel , 16 pins Pad |
| voltas ionchuir | 5.0V (Typ.) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| múnla painéil | FDCC0801A-FLYYBW-51LK |
| cineál painéil | STN-LCD , LCM |
| cruth cló | 5×8 dots |
| páirc carachtar | 7.15×10.75(W×H) mm |
| oscailt bezel | 61.0(W)×15.8(H) mm |
| dromchla | - |
| cóimheas codarsnachta | 6:1 (Typ.) (TM) |
| mód taispeána | STN, Yellow/Green (Positive), Transflective |
| am freagartha | 150/150 (Typ.)(Tr/Tf) |
| cineál lampa | YG-LED , 9K hours , Without Driver |
| scáileán tadhaill | Without |
| iarratas | Instruments & Meters |
