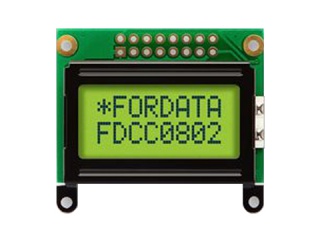

| Uimhir Pháirt | FC0802C00-FHYYBW-51SK |
| Branda | Fordata |
| Méid | 1.1 |
| Iarratas | Instruments & Me |
| Rún | 8×27 |
| Comhdhéanamh | STN-LCD, LCM |
| Gile | |
| CR | 10:1 |
| Dathanna | Monochrome |
| Cúlsolas | YG-LED |
| Comhéadan | 8-bit |
| branda painéil | Fordata |
| múnla painéil | FC0802C00-FHYYBW-51SK |
| méid an phainéil | 1.1" |
| cineál painéil | STN-LCD, LCM |
| formáid taispeána | 8 characters × 2 lines, 7PPI |
| cruth cló | 5×8 dots |
| méid carachtar | 2.95×4.75(W×H) mm |
| páirc carachtar | 3.35×5.15(W×H) mm |
| limistéar taispeána | 26.4(W)×9.9(H) mm |
| oscailt bezel | 30.4(W)×13.9(H) mm |
| méid imlíne | 40(W)×35.4(H) ×13(D) mm |
| dromchla | - |
| gile | - |
| cóimheas codarsnachta | 10:1 (Typ.) (TM) |
| uillinn féachana | - |
| mód taispeána | STN, Yellow/Green (Positive), Transflective |
| radharc is fearr ar | 6 o'clock |
| am freagartha | 150/150 (Typ.)(Tr/Td) |
| dathanna a thaispeáint | Monochrome |
| cineál lampa | YG-LED , 20K hours , Without Driver |
| minicíocht | - |
| scáileán tadhaill | Without |
| meáchan painéal | - |
| iarratas | Instruments & Meters |
| comhéadan comhartha | 8-bit parallel , 16 pins Pad |
| voltas ionchuir | 5.0V (Typ.) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
