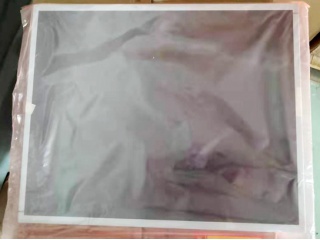

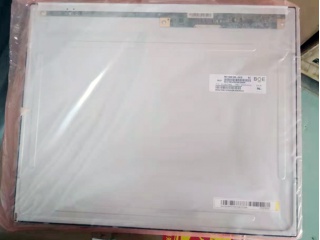

| Uimhir Pháirt | EV190E0M-N50 |
| Branda | BOE |
| Méid | 19.0 |
| Iarratas | Medical Imaging |
| Rún | 1280×1024 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 1200:1 |
| Dathanna | Grayscale |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | BOE |
| múnla painéil | EV190E0M-N50 |
| méid an phainéil | 19.0" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1280(LCR)×1024, SXGA, 86PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 374.784(W)×299.827(H) mm |
| oscailt bezel | 378.8(W)×303(H) mm |
| méid imlíne | 396(W)×324(H) ×10.4(D) mm |
| dromchla | Antiglare (Haze 25%), Hard coating (3H) |
| gile | 1300 cd/m² (Typ.) |
| cóimheas codarsnachta | 1200:1 (Typ.) (TM) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| mód taispeána | ADS, Normally Black, Transmissive |
| radharc is fearr ar | Symmetry |
| am freagartha | 14 (Typ.)(G to G) |
| dathanna a thaispeáint | Grayscale |
| cineál lampa | WLED , 50K hours , Without Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | 1.69Kgs (Typ.) |
| iarratas | Medical Imaging |
| comhéadan comhartha | LVDS (2 ch, 8-bit) , 30 pins Connector |
| voltas ionchuir | 5.0V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| G190EG02 V0 | AUO | 19.0 | 1280×1024 |
| G190ETN02.0 | AUO | 19.0 | 1280×1024 |
| HSD190MEN3-A03 | HannStar | 19.0 | 1280×1024 |
| LM190E09-TLD1 | LG Display | 19.0 | 1280×1024 |
| LTM190BT03 | Samsung | 19.0 | 1440×900 |
| M190EG02 V9 | AUO | 19.0 | 1280×1024 |
| M190PP01 V0 | AUO | 19.0 | 1440×900 |
| MT190AW01 V.C | Innolux | 19.0 | 1440×900 |
| NA19020-C961 | Fujitsu | 19.0 | 1280×1024 |
| TMS190WX1-05TB | Tianma | 19.0 | 1440×900 |
