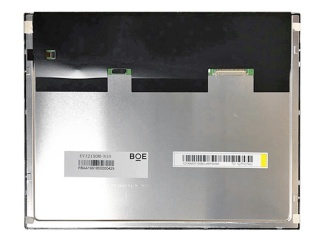

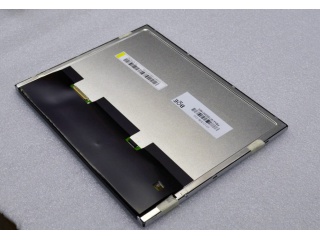

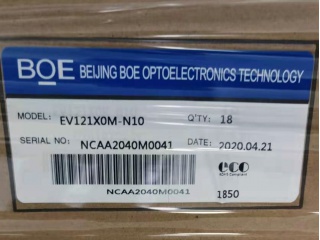

| Uimhir Pháirt | EV121X0M-N10 |
| Branda | BOE |
| Méid | 12.1 |
| Iarratas | Industrial |
| Rún | 1024×768 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 1200:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda | BOE |
| méid trasnánach | 12.1 inch |
| formáid picteilín | 1024(RGB)×768 [XGA] 105PPI |
| limistéar gníomhach | 245.76(H)×184.32(V) mm |
| limistéar bezel | 249(H)×187.5(V) mm |
| luminance | 500 cd/m² (Typ.) |
| treo amharc | Symmetry |
| uillinn féachana | 88/88/88/88 (Typ.)(CR≥10) |
| dath tacaíochta | 16.7M 72% NTSC |
| meáchan | 520g (Max.) |
| ráta fhráma | 60Hz |
| cineál comhéadan | LVDS (1 ch, 8-bit) , 20 pins Connector |
| soláthar leictreachas | 3.3V (Typ.) |
| timpeallacht | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Mionsamhail | EV121X0M-N10 |
| cineál | a-Si TFT-LCD , LCM |
| cumraíocht | RGB Vertical Stripe |
| imlíne dim. | 260.5(H)×204(V) ×9.2(D) mm |
| cóireáil | - |
| cóimheas codarsnachta | 1200:1 (Typ.) (TM) |
| am freagartha | 25 (Typ.)(Tr+Td) |
| modh oibriúcháin | ADS, Normally Black, Transmissive |
| foinse solais | WLED , 50K hours , With LED Driver |
| deartha le haghaidh | Industrial |
| painéal tadhaill | Without |
