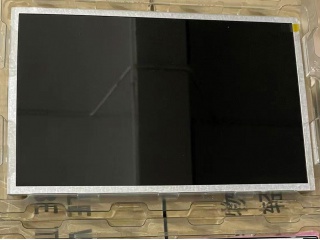

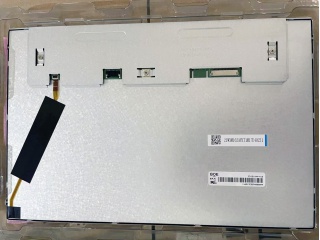

| Uimhir Pháirt | EV121WXM-N12 |
| Branda | BOE |
| Méid | 12.1 |
| Iarratas | Medical Imaging |
| Rún | 1280×800 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 1200:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda | BOE |
| Mionsamhail | EV121WXM-N12 |
| méid trasnánach | 12.1 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 1280(RGB)×800 [WXGA] 124PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 261.12(H)×163.2(V) mm |
| imlíne dim. | 277.7(H)×180.6(V) ×9.2(D) mm |
| limistéar bezel | 264.12(H)×166.2(V) mm |
| cóireáil | Antiglare (Haze 25%) |
| luminance | 500 cd/m² (Typ.) |
| cóimheas codarsnachta | 1200:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 30 (Typ.)(Tr+Td) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| modh oibriúcháin | ADS, Normally Black, Transmissive |
| dath tacaíochta | 262K/16.7M 100% sRGB |
| foinse solais | WLED [12S4P] , 50K hours , With LED Driver |
| meáchan | TBD |
| deartha le haghaidh | Medical Imaging |
| ráta fhráma | 60Hz |
| painéal tadhaill | Without |
| cineál comhéadan | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| soláthar leictreachas | 3.3V (Typ.) |
| timpeallacht | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
