| Uimhir Pháirt | COM70H7M24ULC |
| Branda | Ortustech |
| Méid | 7.0 |
| Iarratas | Industrial Outdoor H |
| Rún | 800×480 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 700:13:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda | Ortustech |
| Mionsamhail | COM70H7M24ULC |
| méid trasnánach | 7.0 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 800(RGB)×480 [WVGA] 133PPI |
| cumraíocht | RGB Vertical Stripe |

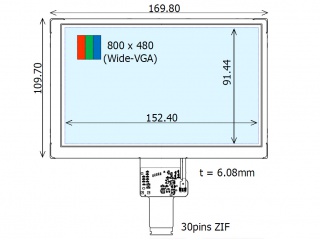

| limistéar gníomhach | 152.4(H)×91.44(V) mm |
| imlíne dim. | 169.8(H)×109.7(V) ×6.11(D) mm |
| limistéar bezel | - |
| cóireáil | Hard coating (3H) |
| luminance | 790 cd/m² (Typ.) |
| cóimheas codarsnachta | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| treo amharc | Symmetry |
| am freagartha | 60/40 (Max.)(Tr/Td) |
| uillinn féachana | 80/80/80/80 (Min.)(CR≥10) |
| modh oibriúcháin | VA, Normally Black, Transflective |
| dath tacaíochta | 262K/16.7M 50% NTSC |
| foinse solais | WLED [8S2P] , 100K hours , W/O Driver |
| meáchan | 170g (Typ.) |
| deartha le haghaidh | Industrial Outdoor High Brightness Automotive Display |
| ráta fhráma | 60Hz |
| painéal tadhaill | Without |
| cineál comhéadan | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| soláthar leictreachas | 3.3V (Typ.) |
| timpeallacht | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 6.8G (66.64 m/s²) |
