| Uimhir Pháirt | COM104T9M10ERS |
| Branda | Ortustech |
| Méid | 10.4 |
| Iarratas | Industrial |
| Rún | 800×600 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 1000:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda | Ortustech |
| Mionsamhail | COM104T9M10ERS |
| méid trasnánach | 10.4 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 800(RGB)×600 [SVGA] 96PPI |
| cumraíocht | RGB Vertical Stripe |

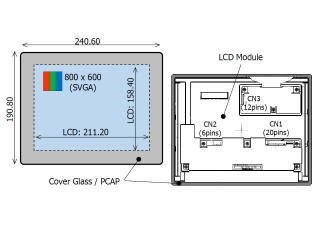

| limistéar gníomhach | 211.2(H)×158.4(V) mm |
| imlíne dim. | 240(H)×190.8(V) mm |
| luminance | 480 cd/m² (Typ.) |
| cóimheas codarsnachta | 1000:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 40 (Max.)(Tr+Td) |
| uillinn féachana | 85/85/85/85 (Min.)(CR≥10) |
| modh oibriúcháin | FFS, Normally Black, Transmissive |
| dath tacaíochta | 262K/16.7M 50% NTSC |
| foinse solais | WLED , 70K hours , With LED Driver |
| meáchan | - |
| deartha le haghaidh | Industrial |
| ráta fhráma | 60Hz |
| painéal tadhaill | PCAP |
| cineál comhéadan | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| soláthar leictreachas | 3.3V (Typ.) |
| timpeallacht | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
