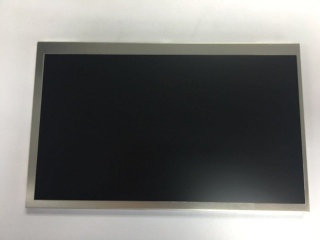

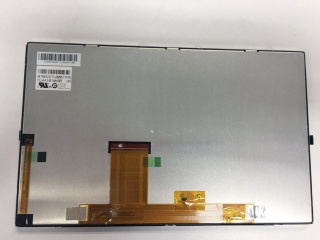

| Uimhir Pháirt | CLAA101WK06 XN |
| Branda | CPT |
| Méid | 10.1 |
| Iarratas | Automotive Display |
| Rún | 1280×720 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 900:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | 6S5P |
| Comhéadan | LVDS |
| branda painéil | CPT |
| múnla painéil | CLAA101WK06 XN |
| méid an phainéil | 10.1" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1280(RGB)×720, WXGA, 144PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 224.64(W)×126.36(H) mm |
| oscailt bezel | 227.64(W)×129.36(H) mm |
| méid imlíne | 238.8(W)×148.05(H) ×8.7(D) mm |
| dromchla | Antiglare (Haze 25%), Hard coating (3H) |
| gile | 600 cd/m² (Typ.) |
| cóimheas codarsnachta | 900:1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| mód taispeána | HFFS, Normally Black, Transmissive |
| radharc is fearr ar | Symmetry |
| am freagartha | 25 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 262K/16.7M 70% NTSC |
| cineál lampa | 6S5P WLED , 30K hours , Without Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | 430g (Typ.) |
| iarratas | Automotive Display |
| comhéadan comhartha | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| voltas ionchuir | 3.3/12.4/24.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| timpeallacht | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| CLAA101NC05 | CPT | 10.1 | 1024×600 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| CLAA101ND07CW | CPT | 10.1 | 1024×600 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| CLAA101WJ06 | CPT | 10.1 | 1366×768 |
