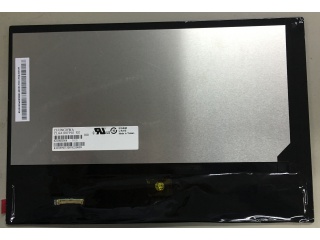

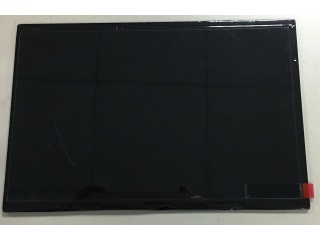

| Uimhir Pháirt | CLAA101FP0J XG |
| Branda | CPT |
| Méid | 10.1 |
| Iarratas | Industrial Outdoor H |
| Rún | 1920×1200 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 750:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | eDP |
| branda painéil | CPT |
| múnla painéil | CLAA101FP0J XG |
| méid an phainéil | 10.1" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1920(RGB)×1200, WUXGA, 225PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 216.576(W)×135.36(H) mm |
| oscailt bezel | - |
| méid imlíne | 228.99(W)×154.4(H) ×5.5(D) mm |
| dromchla | Antiglare, Hard coating |
| gile | 1200 cd/m² (Typ.) |
| cóimheas codarsnachta | 750:1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| mód taispeána | HFFS, Normally Black, Transmissive |
| radharc is fearr ar | Symmetry |
| am freagartha | 30 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 16.7M 50% NTSC |
| cineál lampa | WLED , 15K hours , With LED Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | TBD |
| iarratas | Industrial Outdoor High Brightness |
| comhéadan comhartha | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -10 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| CLAA101NC01CW | CPT | 10.1 | 1024×600 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| CLAA101ND07CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| CLAA101WJ01 | CPT | 10.1 | 1366×768 |
| CLAA101WJ06 | CPT | 10.1 | 1366×768 |
