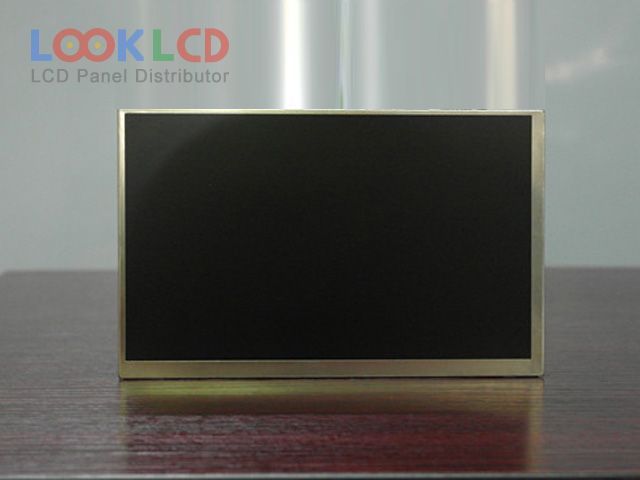

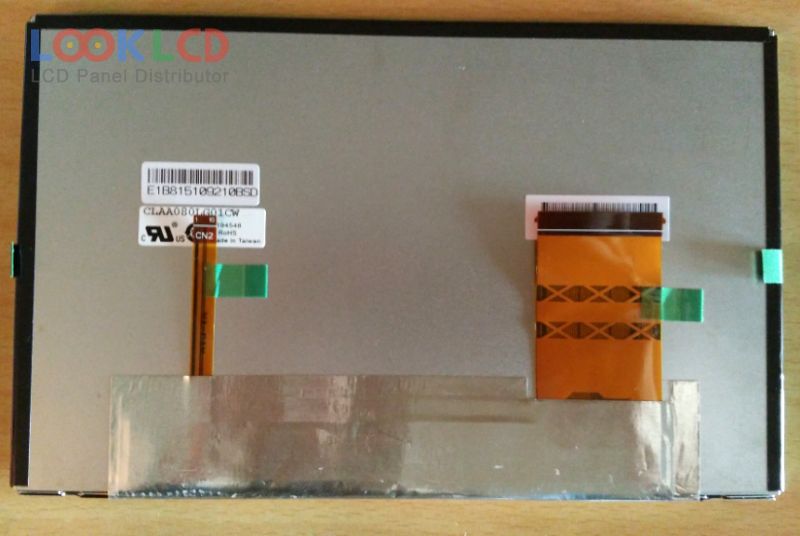

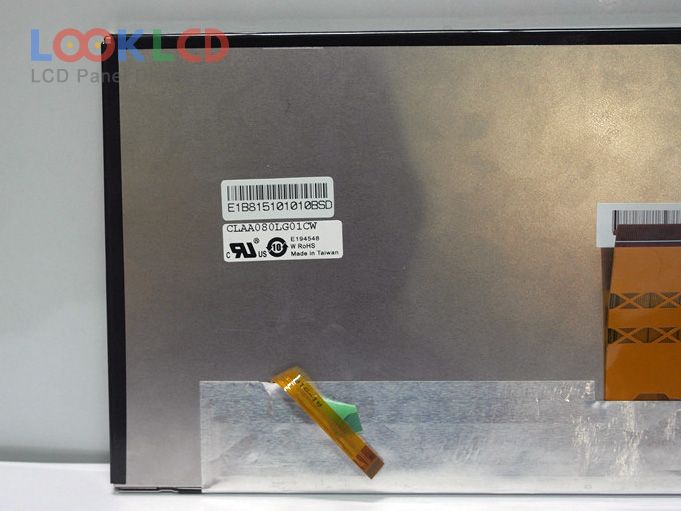

| Uimhir Pháirt | CLAA080LG01CW |
| Branda | CPT |
| Méid | 8.0 |
| Iarratas | CNS |
| Rún | 800×480 |
| Comhdhéanamh | LCM |
| Gile | 750 |
| CR | 400:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | TTL |
| branda painéil | CPT |
| múnla painéil | CLAA080LG01CW |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 8.0 inch |
| taifeach | 800(RGB)×480 , WVGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 175.2×105.12 mm |
| imlíne | 186.5×117.2×6.43 mm |
| dromchla | Antiglare, Hard coating (3H) |
| gile | 750 cd/m² (Typ.) |
| cóimheas codarsnachta | 400:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit), CIE193171% |
| am freagartha | 20 (Typ.)(Tr+Td) |
| uillinn féachana | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 11S2PWLEDWithout Driver |
| comhéadan comhartha | TTL (1 ch, 6-bit), 60 pins |
| voltas ionchuir | 3.3/12.0/18.0/-6.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| iarratas | CNS |
