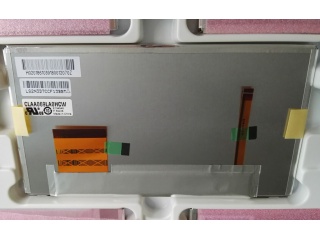

| Uimhir Pháirt | CLAA069LA0HCW |
| Branda | CPT |
| Méid | 7.0 |
| Iarratas | Automotive Display |
| Rún | 800×480 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | |
| branda painéil | CPT |
| méid an phainéil | 7.0" |
| taifeach | 800(RGB)×480, WVGA, 134PPI |
| limistéar taispeána | 156.6(W)×81.6(H) mm |
| uillinn féachana | 75/75/60/70 (Typ.)(CR≥10) |
| radharc is fearr ar | 6 o'clock |
| dathanna a thaispeáint | 262K 70% NTSC |
| minicíocht | 60Hz |
| meáchan | 165g (Typ.) |
| múnla painéil | CLAA069LA0HCW |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | - |
| mód taispeána | TN, Normally White, Transmissive |
| am freagartha | 20 (Typ.)(Tr+Td) |
| cineál lampa | WLED |
| scáileán tadhaill | Without |
| iarratas | Automotive Display |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA069LA1AAW | CPT | 7.0 | 800×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA069LB03CW | CPT | 7.0 | 800×480 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
