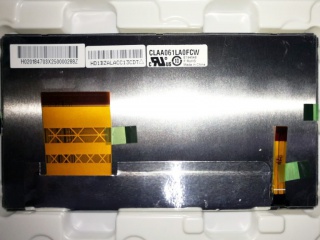

| Uimhir Pháirt | CLAA061LA0FCW |
| Branda | CPT |
| Méid | 6.1 |
| Iarratas | Automotive Display |
| Rún | 800×480 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 400:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | TTL |
| branda painéil | CPT |
| méid an phainéil | 6.1" |
| taifeach | 800(RGB)×480, WVGA, 153PPI |
| limistéar taispeána | 136.2(W)×72(H) mm |
| gile | - |
| uillinn féachana | 70/70/50/70 (Typ.)(CR≥10) |
| radharc is fearr ar | 6 o'clock |
| dathanna a thaispeáint | 262K 70% NTSC |
| minicíocht | 60Hz |
| meáchan painéal | - |
| comhéadan comhartha | TTL (1 ch, 6-bit) |
| timpeallacht | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| múnla painéil | CLAA061LA0FCW |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | - |
| cóimheas codarsnachta | 400:1 (Typ.) (TM) |
| mód taispeána | TN, Normally White, Transmissive |
| am freagartha | 20 (Typ.)(Tr+Td) |
| cineál lampa | WLED |
| scáileán tadhaill | Without |
| iarratas | Automotive Display |
