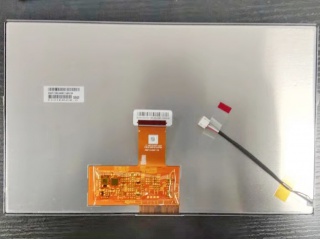

| Uimhir Pháirt | C101EAN02.0 |
| Branda | AUO |
| Méid | 10.1 |
| Iarratas | Outdoor High Brightn |
| Rún | 1280×720 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | MIPI |
| branda | AUO |
| Mionsamhail | C101EAN02.0 |
| méid trasnánach | 10.1 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 1280(RGB)×720 [WXGA] 145PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 223.68(H)×125.82(V) mm |
| imlíne dim. | 238.6(H)×148(V) ×10.8(D) mm |
| limistéar bezel | 226.78(H)×132.22(V) mm |
| cóireáil | Antiglare |
| luminance | 780 cd/m² (Typ.) |
| cóimheas codarsnachta | 1000:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 20/20 (Max.)(Tr/Td) |
| uillinn féachana | 80/80/80/80 (Typ.)(CR≥10) |
| modh oibriúcháin | AHVA, Normally Black, Transmissive |
| dath tacaíochta | 16.7M 98% sRGB |
| foinse solais | WLED [8S3P] , 10K hours , W/O Driver |
| meáchan | 400±40g |
| deartha le haghaidh | Outdoor High Brightness Automotive Display |
| ráta fhráma | 60Hz |
| painéal tadhaill | Without |

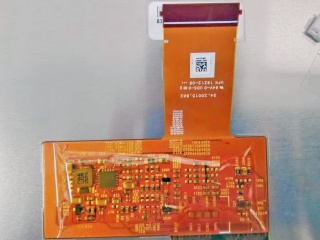

| cineál comhéadan | MIPI (4 data lanes) , 40 pins FPC |
| soláthar leictreachas | 3.3/3.3V (Typ.)(VDD/VDDA) |
| timpeallacht | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| BP101WX1-100 | BOE | 10.1 | 1280×800 |
| BT101IW01 V.0 | Innolux | 10.1 | 1024×600 |
| LP101WH1-TLA1 | LG Display | 10.1 | 1366×768 |
| LP101WH1-TLB1 | LG Display | 10.1 | 1366×768 |
| LQ101R1SX01A | SHARP | 10.1 | 2560×1600 |
| LTN101AT03-801 | Samsung | 10.1 | 1366×768 |
| N101L6-L0B | Innolux | 10.1 | 1024×600 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
