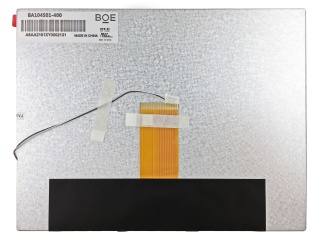

| Uimhir Pháirt | BA104S01-400 |
| Branda | BOE |
| Méid | 10.4 |
| Iarratas | Digital Photo Frame |
| Rún | 800×600 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 800:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | 3S12P |
| Comhéadan | Parallel |
| branda painéil | BOE |
| méid an phainéil | 10.4" |
| taifeach | 800(RGB)×600, SVGA, 96PPI |
| limistéar taispeána | 211.2(W)×158.4(H) mm |
| méid imlíne | 228.4(W)×175.4(H) mm |
| gile | 350 cd/m² (Typ.) |
| uillinn féachana | 80/80/65/75 (Typ.)(CR≥10) |
| radharc is fearr ar | - |
| dathanna a thaispeáint | 262K/16.7M 55% NTSC |
| minicíocht | 60Hz |
| meáchan painéal | TBD |
| comhéadan comhartha | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| voltas ionchuir | 3.3/9/18/-8V (Typ.)(VCC/AVDD/VGH/VGL) |
| timpeallacht | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| múnla painéil | BA104S01-400 |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | 214.4(W)×161.6(H) mm |
| dromchla | Antiglare |
| cóimheas codarsnachta | 800:1 (Typ.) (TM) |
| mód taispeána | TN, Normally White, Transmissive |
| am freagartha | 30 (Typ.)(Tr+Td) |
| cineál lampa | 3S12P WLED , 20K hours , Without Driver |
| scáileán tadhaill | Without |
| iarratas | Digital Photo Frame Home Appliance |
