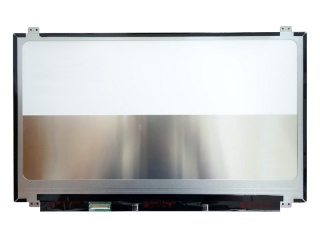

| Uimhir Pháirt | B173ZAN01.1 |
| Branda | AUO |
| Méid | 17.3 |
| Iarratas | Laptop |
| Rún | 3840×2160 |
| Comhdhéanamh | LCM , a-Si TFT-LCD |
| Gile | |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | eDP |
| monaróir | AUO |
| méid scáileáin | 17.3 inch |
| uimhir picteilín | 3840(RGB)×2160 (UHD) 255PPI |
| limistéar gníomhach(mm) | 382.12 × 214.94 (H×V) |
| limistéar bezel (mm) | - |
| luminance | 300 cd/m² (Typ.) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| radharc maith ag | Symmetry |
| doimhneacht dath | 16.7M 100% Adobe RGB |
| cruth imlíne | Flat (PCBA Flat, T3.4~4.0mm) |
| ráta athnuachana | 60Hz |
| cineál comhartha | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| soláthar voltais | 3.3V (Typ.) |
| uas. rátálacha | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| ainm samhail | B173ZAN01.1 (AUO119B) |
| cineál scáileáin | LCM , a-Si TFT-LCD |
| socrú | RGB Vertical Stripe |
| imlíne (mm) | 398.1 × 252.5 × 4 (H×V×D) |
| cóireáil | Antiglare, Hard coating (3H) |
| cóimheas codarsnachta | 1000 : 1 (Typ.) (TM) |
| freagra | 27 (Typ.)(Tr+Td) ms |
| modh oibre | AHVA, Normally Black, Transmissive |
| cúlsolas | WLED , 15K hours , With LED Driver |
| a úsáidtear le haghaidh | Laptop |
| scáileán tadhaill | Without |
