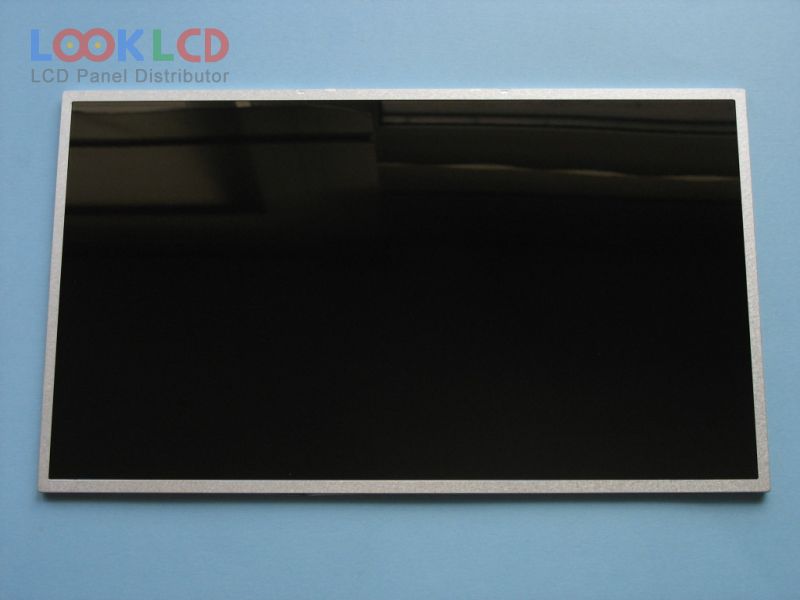

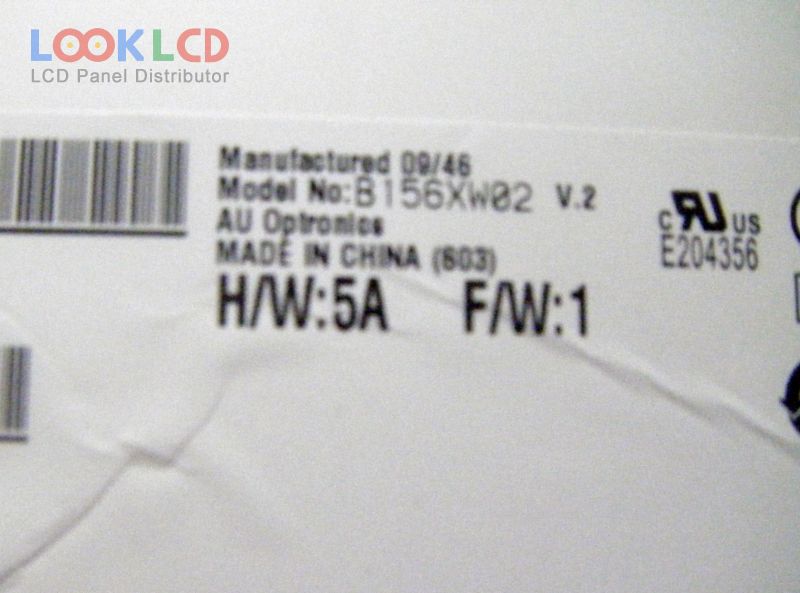

| Uimhir Pháirt | B156XW02 V2 HW4A |
| Branda | AUO |
| Méid | 15.6 |
| Iarratas | NBPC |
| Rún | 1366×768 |
| Comhdhéanamh | LCM |
| Gile | 200 |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | AUO |
| múnla painéil | B156XW02 V2 HW4A 2 Compatible model |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 15.6 inch |
| taifeach | 1366(RGB)×768 , WXGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 344.232×193.536 mm |
| imlíne | 359.3×209.5×5.5 mm |
| stíl cruth | Wedge (PCBA Bent, Depth ≥5.2mm) |
| dromchla | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.) |
| gile | 200 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit), CIE193160% |
| am freagartha | 6/2 (Typ.)(Tr/Td) |
| uillinn féachana | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | WLEDEmbedded (LED Driver) |
| comhéadan comhartha | LVDS (1 ch, 6-bit), 40 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | NBPC |
