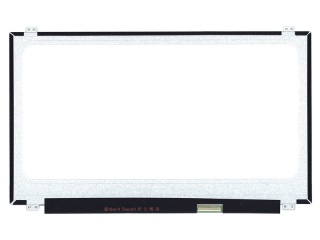

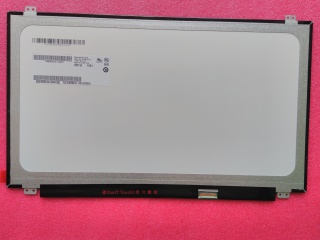

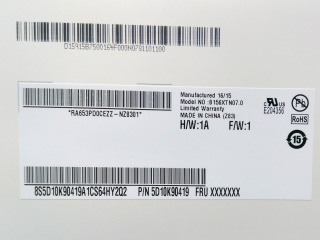

| Uimhir Pháirt | B156XTN07.0 HW1A |
| Branda | AUO |
| Méid | 15.6 |
| Iarratas | Laptop |
| Rún | 1366×768 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | |
| branda | AUO |
| méid trasnánach | 15.6 inch |
| formáid picteilín | 1366(RGB)×768 [WXGA] 100PPI |
| limistéar gníomhach | 344.232(H)×193.536(V) mm |
| limistéar bezel | - |
| luminance | 200 cd/m² (Typ.) |
| treo amharc | 6 o'clock |
| uillinn féachana | 45/45/15/35 (Typ.)(CR≥10) |
| dath tacaíochta | 262K 45% NTSC |
| stíl fhoirm | Slim (PCBA Flat, T≤3.2mm) |
| ráta fhráma | 60Hz |
| Mionsamhail | B156XTN07.0 HW1A (AUO10EC) |
| cineál | a-Si TFT-LCD , LCM |
| cumraíocht | RGB Vertical Stripe |
| imlíne dim. | 359.5(H)×223.8(V) ×3.2(D) mm |
| cóireáil | Glare (Haze 0%) |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| am freagartha | 8 (Typ.)(Tr+Td) |
| modh oibriúcháin | TN, Normally White, Transmissive |
| foinse solais | WLED , 15K hours , With LED Driver |
| deartha le haghaidh | Laptop |
| painéal tadhaill | Without |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| B156XTN02.0 | AUO | 15.6 | 1366×768 |
| B156XTN02.2 | AUO | 15.6 | 1366×768 |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| B156XTN03.1 | AUO | 15.6 | 1366×768 |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| B156XTN03.5 | AUO | 15.6 | 1366×768 |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| B156XTN04.5 | AUO | 15.6 | 1366×768 |
| B156XTN05.0 | AUO | 15.6 | 1366×768 |
