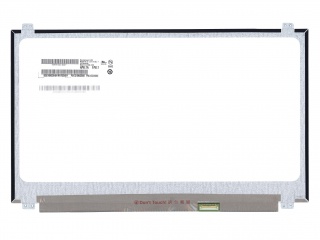

| Uimhir Pháirt | B156HAN02.1 HW1A |
| Branda | AUO |
| Méid | 15.6 |
| Iarratas | Laptop |
| Rún | 1920×1080 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 800:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | eDP |
| branda painéil | AUO |
| méid an phainéil | 15.6" |
| taifeach | 1920(RGB)×1080, FHD, 141PPI |
| limistéar taispeána | 344.16(W)×193.59(H) mm |
| méid imlíne | 350.66(W)×223.6(H) ×3.2(D) mm |
| gile | 250 cd/m² (Typ.) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| radharc is fearr ar | Symmetry |
| dathanna a thaispeáint | 262K 46% NTSC |
| minicíocht | 60Hz |
| stíl cruth | Slim (PCBA Flat, T≤3.2mm) |
| comhéadan comhartha | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| múnla painéil | B156HAN02.1 HW1A (AUO21ED) 9 Compatible |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | - |
| dromchla | Antiglare |
| cóimheas codarsnachta | 800:1 (Typ.) (TM) |
| mód taispeána | AHVA, Normally Black, Transmissive |
| am freagartha | 25 (Typ.)(Tr+Td) |
| cineál lampa | WLED , 15K hours , With LED Driver |
| scáileán tadhaill | Without |
| iarratas | Laptop |
