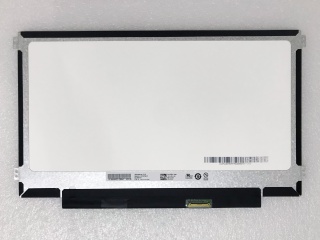

| Uimhir Pháirt | B116XTN02.3 HW2G |
| Branda | AUO |
| Méid | 11.6 |
| Iarratas | Laptop Netbook PC |
| Rún | 1366×768 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 400:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | eDP |
| branda | AUO |
| méid trasnánach | 11.6 inch |
| formáid picteilín | 1366(RGB)×768 [WXGA] 135PPI |
| limistéar gníomhach | 256.125(H)×144(V) mm |
| limistéar bezel | - |
| luminance | 220 cd/m² (Typ.) |
| treo amharc | 6 o'clock |
| uillinn féachana | 45/45/15/35 (Typ.)(CR≥10) |
| dath tacaíochta | 262K 45% NTSC |
| stíl fhoirm | Slim (PCBA Flat, T≤3.2mm) |
| ráta fhráma | 60Hz |
| cineál comhéadan | eDP (2 Lanes) , 30 pins Connector |
| soláthar leictreachas | 3.3V (Typ.) |
| timpeallacht | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Mionsamhail | B116XTN02.3 HW2G |
| cineál | a-Si TFT-LCD , LCM |
| cumraíocht | RGB Vertical Stripe |
| imlíne dim. | 278(H)×168(V) ×3(D) mm |
| cóireáil | Hard coating (3H) |
| cóimheas codarsnachta | 400:1 (Typ.) (TM) |
| am freagartha | 8 (Typ.)(Tr+Td) |
| modh oibriúcháin | TN, Normally White, Transmissive |
| foinse solais | WLED , 15K hours , With LED Driver |
| deartha le haghaidh | Laptop Netbook PC |
| painéal tadhaill | Without |
