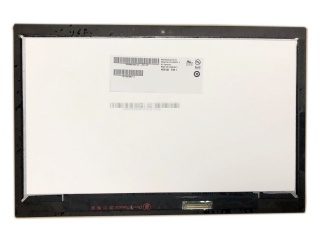

| Uimhir Pháirt | B116XAB01.4 |
| Branda | AUO |
| Méid | 11.6 |
| Iarratas | Laptop |
| Rún | 1366×768 |
| Comhdhéanamh | Assembly , a-Si TF |
| Gile | |
| CR | 800:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | eDP |
| monaróir | AUO |
| méid scáileáin | 11.6 inch |
| uimhir picteilín | 1366(RGB)×768 (WXGA) 135PPI |
| limistéar gníomhach(mm) | 256.125 × 144 (H×V) |
| limistéar bezel (mm) | - |
| luminance | 235 cd/m² (Typ.) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| radharc maith ag | Symmetry |
| doimhneacht dath | 262K 50% NTSC |
| cruth imlíne | - |
| ráta athnuachana | 60Hz |
| cineál comhartha | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| soláthar voltais | 3.3V (Typ.) |
| uas. rátálacha | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| ainm samhail | B116XAB01.4 (AUO145C) |
| cineál scáileáin | Assembly , a-Si TFT-LCD |
| socrú | RGB Vertical Stripe |
| imlíne (mm) | 284.1 × 185 × 4.05 (H×V×D) |
| cóireáil | Glare (Haze 0%), Hard coating (7H) |
| cóimheas codarsnachta | 800 : 1 (Typ.) (TM) |
| freagra | 27 (Typ.)(Tr+Td) ms |
| modh oibre | - |
| cúlsolas | WLED , 15K hours , With LED Driver |
| a úsáidtear le haghaidh | Laptop |
| scáileán tadhaill | On-Cell Touch |
| B116XAN03.0 HW3A | AUO | 11.6 | 1366×768 |
| B116XAN03.1 HW1A | AUO | 11.6 | 1366×768 |
| B116XTB01.0 | AUO | 11.6 | 1366×768 |
| B116XTN01.0 HW1A | AUO | 11.6 | 1366×768 |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| B116XTT01.1 | AUO | 11.6 | 1366×768 |
| B116XW01 V0 | AUO | 11.6 | 1366×768 |
| B116XW02 V1 | AUO | 11.6 | 1366×768 |
| B116XW03 V0 | AUO | 11.6 | 1366×768 |
| B116XW03 V1 | AUO | 11.6 | 1366×768 |
