| Uimhir Pháirt | AV123Z7M-N1C |
| Branda | BOE |
| Méid | 12.3 |
| Iarratas | Outdoor High Brightn |
| Rún | 1920×720 |
| Comhdhéanamh | LCM , a-Si TFT-LCD |
| Gile | |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | 4 |
| Comhéadan | LVDS |
| monaróir | BOE |
| ainm samhail | AV123Z7M-N1C 1 Compatible |
| méid scáileáin | 12.3 inch |
| cineál scáileáin | LCM , a-Si TFT-LCD |
| uimhir picteilín | 1920(RGB)×720 167PPI |
| socrú | RGB Vertical Stripe |
| limistéar gníomhach(mm) | 292.032 × 109.512 (H×V) |
| imlíne (mm) | 307 × 125.5 × 13.6 (H×V×D) |
| limistéar bezel (mm) | 295 × 112 (H×V) |
| cóireáil | Antiglare, Hard coating (3H), Reflection 6.0% (Max.) |
| luminance | 800 cd/m² (Typ.) |
| cóimheas codarsnachta | 1000 : 1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| freagra | 30 (Typ.)(Tr+Td) ms |
| radharc maith ag | Symmetry |
| modh oibre | FFS, Normally Black, Transmissive |
| doimhneacht dath | 16.7M 70% NTSC |
| cúlsolas | 4 strings WLED , 30K hours , No Driver |
| mais | TBD |
| a úsáidtear le haghaidh | Outdoor High Brightness Automotive Display |
| ráta athnuachana | 60Hz |
| scáileán tadhaill | - |

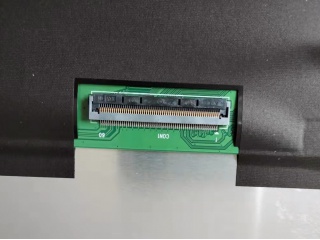

| cineál comhartha | LVDS (2 ch, 8-bit) , 60 pins Connector |
| soláthar voltais | 3.3/3.3V (Typ.)(VDD/VDDA) |
| uas. rátálacha | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
| AV123Z7M-N11 | BOE | 12.3 | 1920×720 |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
