Innolux AT080TN42 V.1 bileog sonraí, sonraíocht, stoic, feidhmchlár www.looklcd-ie.com
LookLCD LookLCD

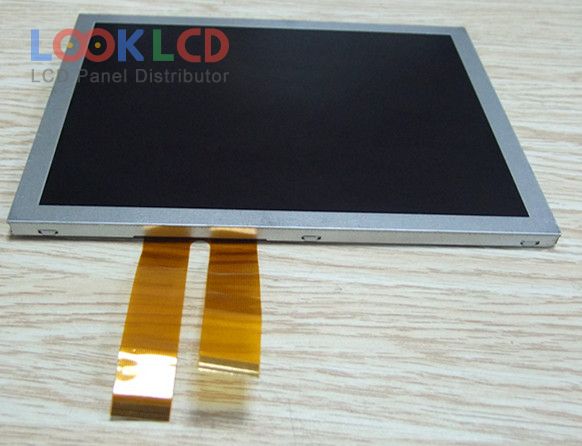

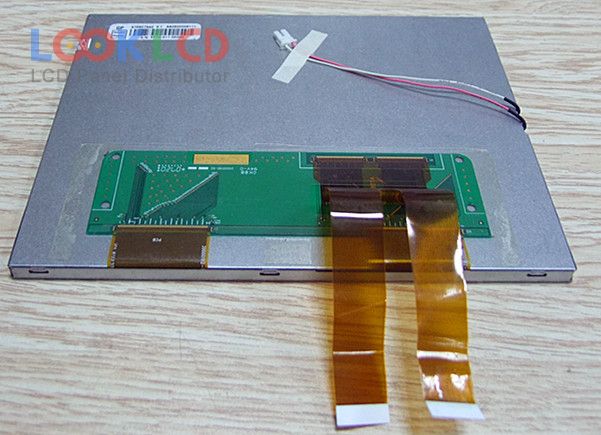

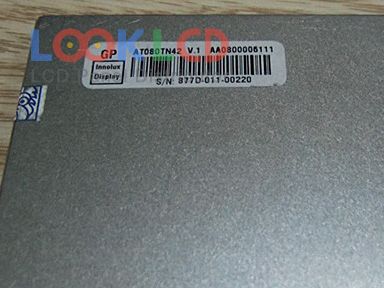

AT080TN42 V.1

AT080TN42 V.1
AT080TN42 V.1
AT080TN42 V.1
AT080TN42 V.1 thumb AT080TN42 V.1 thumb AT080TN42 V.1 thumb
Branda
Innolux
Méid
8.0
Iarratas
CNS
Rún
800×600
Comhdhéanamh
LCM
Gile
250
CR
500:1
Dathanna
262K
Cúlsolas
WLED
Comhéadan
TTL
In Stock
493
Sonraíochtaí

Uimhir Pháirt AT080TN42 V.1
BrandaInnolux
Méid8.0
IarratasCNS
Rún800×600
ComhdhéanamhLCM
Gile250
CR500:1
Dathanna262K
CúlsolasWLED
ComhéadanTTL
branda painéilINNOLUX
múnla painéilAT080TN42 V.1
cineál painéil a-Si TFT-LCD , LCM
méid an phainéil8.0 inch
taifeach800(RGB)×600 , SVGA
mód taispeánaTN, Normally White, Transmissive
limistéar gníomhach162×121.5 mm
imlíne183×141 mm
dromchlaAntiglare
gile250 cd/m² (Typ.)
cóimheas codarsnachta500:1 (Typ.)
dathanna a thaispeáint262K (6-bit)
am freagartha10/15 (Typ.)(Tr/Td)
uillinn féachana70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
cineál lampa3S9PWLEDWithout Driver
comhéadan comharthaParallel RGB (1 ch, 6-bit), 60 pins
voltas ionchuir3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
rohs:
iarratasCNS
Múnla Teaghlaigh
AT080TN01 Innolux 8.0 800×480
AT080TN03 V.1 Innolux 8.0 800×480
AT080TN03 V.2 Innolux 8.0 800×480
AT080TN03 V.7 Innolux 8.0 800×480
AT080TN42 Innolux 8.0 800×600
AT080TN42 V.1 Innolux 8.0 800×600
AT080TN43 Innolux 8.0 800×600
AT080TN52 Innolux 8.0 800×600
AT080TN52 V.1 Innolux 8.0 800×600
AT080TN64 Innolux 8.0 800×480
