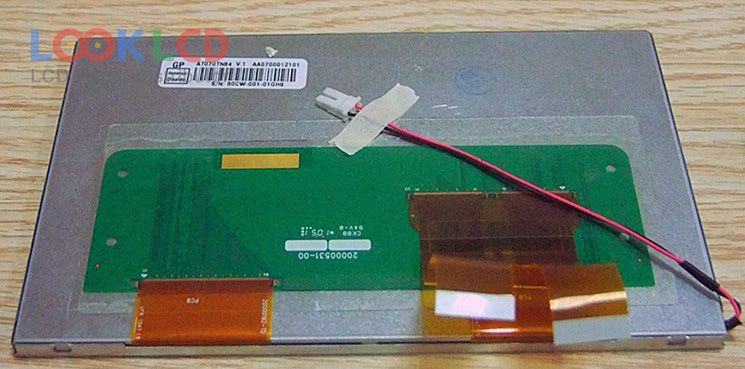

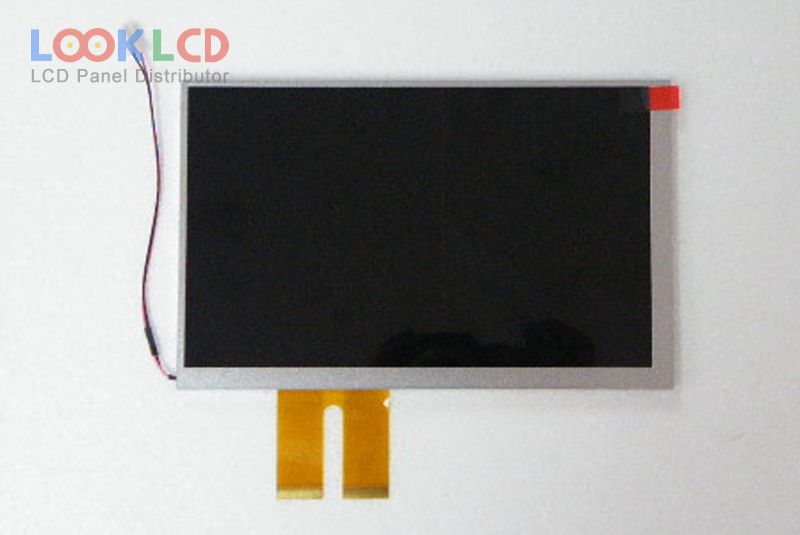

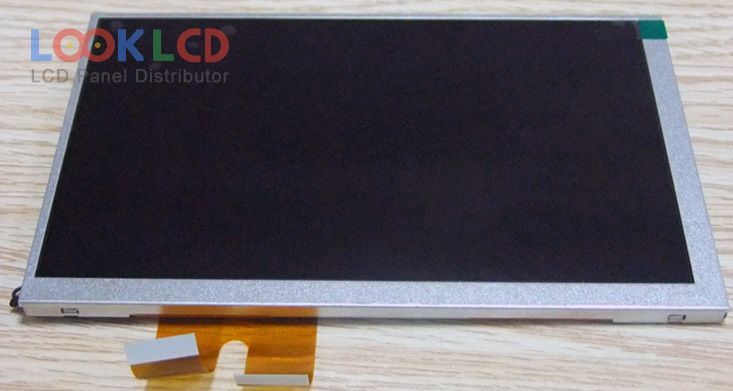

| Uimhir Pháirt | AT070TN84 V.1 |
| Branda | Innolux |
| Méid | 7.0 |
| Iarratas | CNS |
| Rún | 800×480 |
| Comhdhéanamh | LCM |
| Gile | 450 |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | TTL |
| branda painéil | INNOLUX |
| múnla painéil | AT070TN84 V.1 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 7.0 inch |
| taifeach | 800(RGB)×480 , WVGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 152.4×91.44 mm |
| imlíne | 165×104×6.3 mm |
| dromchla | Antiglare |
| gile | 450 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit) |
| am freagartha | 10/15 (Typ.)(Tr/Td) |
| uillinn féachana | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| cineál lampa | 3S9PWLEDWithout Driver |
| comhéadan comhartha | Parallel RGB (1 ch, 6-bit), 60 pins |
| voltas ionchuir | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| iarratas | CNS |
