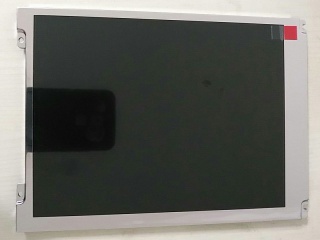

| Uimhir Pháirt | AM-800600MGTMQW-00H |
| Branda | AMPIRE |
| Méid | 8.4 |
| Iarratas | Industrial |
| Rún | 800×600 |
| Comhdhéanamh | LCM, a-Si TFT-LCD |
| Gile | |
| CR | 600:1 |
| Dathanna | 16.7M |
| Cúlsolas | 12S4P |
| Comhéadan | LVDS |
| monaróir | AMPIRE |
| ainm samhail | AM-800600MGTMQW-00H |
| méid scáileáin | 8.4 inch |
| cineál scáileáin | LCM, a-Si TFT-LCD |
| uimhir picteilín | 800(RGB)×600 (SVGA) 119PPI |
| socrú | RGB Vertical Stripe |
| limistéar gníomhach(mm) | 170.4 × 127.8 (H×V) |
| imlíne (mm) | 203 × 145.5 × 10.9 (H×V×D) |
| limistéar bezel (mm) | 174.15 × 131.2 (H×V) |
| cóireáil | - |
| luminance | 350 cd/m² (Typ.) |
| cóimheas codarsnachta | 600 : 1 (Typ.) (TM) |
| uillinn féachana | 75/75/60/70 (Typ.)(CR≥10) |
| freagra | 8 (Typ.)(Tr+Td) ms |
| radharc maith ag | - |
| modh oibre | TN, Normally White, Transmissive |
| doimhneacht dath | 16.7M |
| cúlsolas | 12S4P WLED , 50K hours , With LED Driver |
| mais | TBD |
| a úsáidtear le haghaidh | Industrial |
| ráta athnuachana | 60Hz |
| scáileán tadhaill | Without |
| cineál comhartha | LVDS (1 ch, 8-bit) , Connector 20 pins |
| soláthar voltais | 3.3V (Typ.) |
| uas. rátálacha | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
