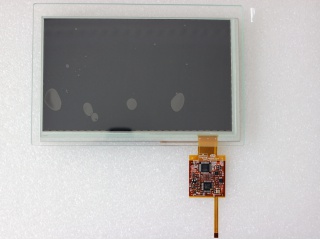

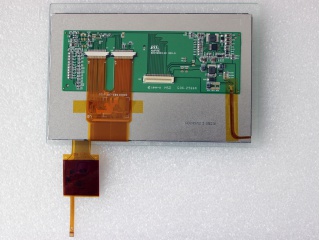

| Uimhir Pháirt | AM-800480RSTMQW-TBCH |
| Branda | AMPIRE |
| Méid | 7.0 |
| Iarratas | Industrial |
| Rún | 800×480 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 400:1 |
| Dathanna | 262K |
| Cúlsolas | 3S10P |
| Comhéadan | LVDS |
| branda painéil | AMPIRE |
| múnla painéil | AM-800480RSTMQW-TBCH |
| méid an phainéil | 7.0" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 800(RGB)×480, WVGA, 133PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 152.4(W)×91.44(H) mm |
| oscailt bezel | 155.3(W)×94.3(H) mm |
| méid imlíne | 174(W)×118(H) ×11.99(D) mm |
| dromchla | - |
| gile | 425 cd/m² (Typ.) |
| cóimheas codarsnachta | 400:1 (Typ.) (TM) |
| uillinn féachana | 70/70/70/60 (Typ.)(CR≥10) |
| mód taispeána | TN, Normally White, Transmissive |
| radharc is fearr ar | 6 o'clock |
| am freagartha | 5/11 (Typ.)(Tr/Td) |
| dathanna a thaispeáint | 262K |
| cineál lampa | 3S10P WLED , 40K hours , With LED Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | PCAP |
| meáchan painéal | TBD |
| iarratas | Industrial |
| comhéadan comhartha | LVDS (1 ch, 6-bit) , 40 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
