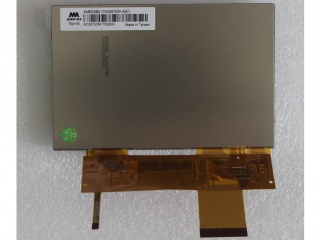

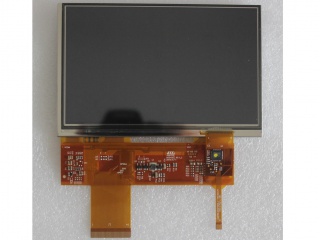

| Uimhir Pháirt | AM-800480L1TMQW-TN0H-A |
| Branda | AMPIRE |
| Méid | 5.0 |
| Iarratas | Industrial |
| Rún | 800×480 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 250:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | Parallel |
| branda | AMPIRE |
| Mionsamhail | AM-800480L1TMQW-TN0H-A |
| méid trasnánach | 5.0 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 800(RGB)×480 [WVGA] 188PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 108(H)×64.8(V) mm |
| imlíne dim. | 118.5(H)×74(V) ×5.01(D) mm |
| limistéar bezel | 110.6(H)×67.4(V) mm |
| cóireáil | Antiglare |
| luminance | 360 cd/m² (Typ.) |
| cóimheas codarsnachta | 250:1 (Typ.) (TM) |
| treo amharc | 6 o'clock |
| am freagartha | 15/35 (Typ.)(Tr/Td) |
| uillinn féachana | 70/70/70/50 (Typ.)(CR≥10) |
| modh oibriúcháin | TN, Normally White, Transmissive |
| dath tacaíochta | 16.7M 52% NTSC |
| foinse solais | WLED [3S6P] , W/O Driver |
| meáchan | - |
| deartha le haghaidh | Industrial |
| ráta fhráma | 60Hz |
| painéal tadhaill | PCAP |
| cineál comhéadan | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| soláthar leictreachas | 3.3V (Typ.) |
| timpeallacht | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| A050AVV50R0 | Aptus | 5.0 | 800×480 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| LB050WQ2-TD03 | LG Display | 5.0 | 480×272 |
| LB050WQ3-TD04 | LG Display | 5.0 | 480×272 |
| LD050WV1-SP01 | LG Display | 5.0 | 480×800 |
| LMS500HF13-003 | Samsung | 5.0 | 480×272 |
| LTE052T-4301-1 | TPO | 5.0 | 320×234 |
| LTG500QV-F03 | Samsung | 5.0 | 320×240 |
| P50AD4 | E Ink | 5.0 | 320×234 |
| TFD50W52MS3 | TOSHIBA | 5.0 |
