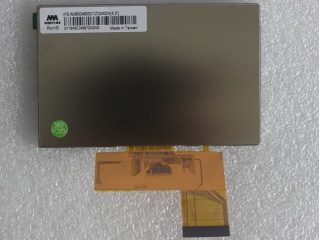

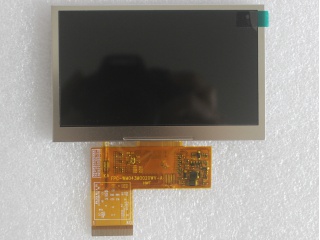

| Uimhir Pháirt | AM-800480BDTZQW-00H |
| Branda | AMPIRE |
| Méid | 4.3 |
| Iarratas | Industrial Automotiv |
| Rún | 800×480 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 700:1 |
| Dathanna | 16.2M |
| Cúlsolas | WLED |
| Comhéadan | Parallel |
| branda | AMPIRE |
| Mionsamhail | AM-800480BDTZQW-00H |
| méid trasnánach | 4.3 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 800(RGB)×480 [WVGA] 216PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 95.04(H)×53.856(V) mm |
| imlíne dim. | 105.3(H)×67(V) mm |
| limistéar bezel | 97.9(H)×56.7(V) mm |
| cóireáil | - |
| luminance | 500 cd/m² (Typ.) |
| cóimheas codarsnachta | 700:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 40 (Typ.)(Tr+Td) |
| uillinn féachana | 80/80/80/80 (Typ.)(CR≥10) |
| modh oibriúcháin | Normally Black, Transmissive |
| dath tacaíochta | 16.2M |
| foinse solais | WLED [6S2P] , 50K hours , W/O Driver |
| meáchan | - |
| deartha le haghaidh | Industrial Automotive Display |
| ráta fhráma | 60Hz |
| painéal tadhaill | Without |
| cineál comhéadan | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| soláthar leictreachas | 3.3V (Typ.) |
| timpeallacht | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
