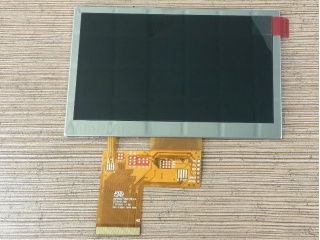

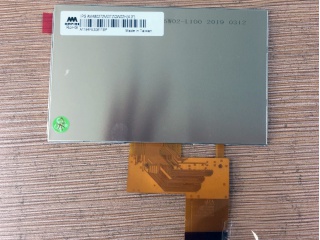

| Uimhir Pháirt | AM-480272MGTZQW-02H |
| Branda | AMPIRE |
| Méid | 4.3 |
| Iarratas | Industrial Outdoor H |
| Rún | 480×272 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 800:1 |
| Dathanna | 16.7M |
| Cúlsolas | 5S3P |
| Comhéadan | Parallel |
| branda painéil | AMPIRE |
| múnla painéil | AM-480272MGTZQW-02H |
| méid an phainéil | 4.3" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 480(RGB)×272, WQVGA, 128PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 95.04(W)×53.856(H) mm |
| oscailt bezel | 97.6(W)×56.0(H) mm |
| méid imlíne | 105.6(W)×67.2(H) ×3.1(D) mm |
| dromchla | - |
| gile | 1000 cd/m² (Typ.) |
| cóimheas codarsnachta | 800:1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| mód taispeána | IPS, Normally Black, Transmissive |
| radharc is fearr ar | Symmetry |
| am freagartha | 30 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 16.7M 51% NTSC |
| cineál lampa | 5S3P WLED , Without Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | - |
| iarratas | Industrial Outdoor High Brightness Automotive Display |
| comhéadan comhartha | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
