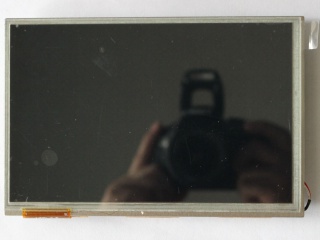

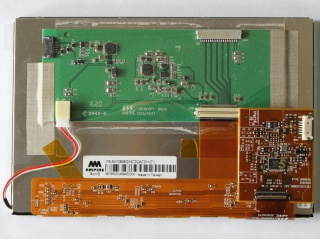

| Uimhir Pháirt | AM-1280800P4TZQW-T01H |
| Branda | AMPIRE |
| Méid | 7.0 |
| Iarratas | Industrial Outdoor H |
| Rún | 1280×800 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 800:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | |
| branda | AMPIRE |
| Mionsamhail | AM-1280800P4TZQW-T01H |
| méid trasnánach | 7.0 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 1280(RGB)×800 [WXGA] 217PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 149.76(H)×93.6(V) mm |
| imlíne dim. | 162.3(H)×107.9(V) ×11.76(D) mm |
| limistéar bezel | 152.76(H)×96.6(V) mm |
| cóireáil | - |
| luminance | 1275 cd/m² (Typ.) |
| cóimheas codarsnachta | 800:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 35 (Typ.)(Tr+Td) |
| uillinn féachana | 80/80/80/80 (Typ.)(CR≥10) |
| modh oibriúcháin | SFT, Normally Black, Transmissive |
| dath tacaíochta | 16.7M 50% NTSC |
| foinse solais | WLED [5S4P] , 50K hours , With LED Driver |
| meáchan | - |
| deartha le haghaidh | Industrial Outdoor High Brightness |
| ráta fhráma | 60Hz |
| painéal tadhaill | PCAP |
| Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
