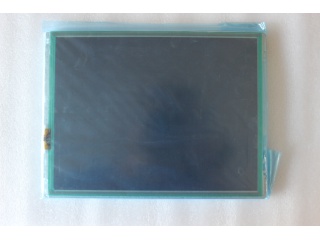

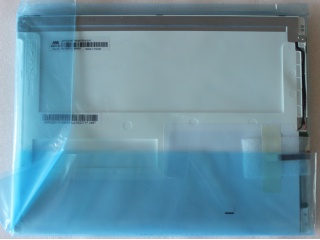

| Uimhir Pháirt | AM-1024768TTMQW-T00H |
| Branda | AMPIRE |
| Méid | 10.4 |
| Iarratas | Industrial |
| Rún | 1024×768 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 900:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda | AMPIRE |
| Mionsamhail | AM-1024768TTMQW-T00H |
| méid trasnánach | 10.4 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 1024(RGB)×768 [XGA] 123PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 211.2(H)×158.4(V) mm |
| imlíne dim. | 236(H)×176.9(V) ×7.9(D) mm |
| limistéar bezel | 214.8(H)×162.0(V) mm |
| cóireáil | Antiglare |
| luminance | 280 cd/m² (Typ.) |
| cóimheas codarsnachta | 900:1 (Typ.) (TM) |
| treo amharc | 6 o'clock |
| am freagartha | 16 (Typ.)(Tr+Td) |
| uillinn féachana | 75/75/75/75 (Typ.)(CR≥10) |
| modh oibriúcháin | TN, Normally White, Transmissive |
| dath tacaíochta | 262K/16.7M |
| foinse solais | WLED [4 strings] , 30K hours , With LED Driver |
| meáchan | 290g (Max.) |
| deartha le haghaidh | Industrial |
| ráta fhráma | 60Hz |
| painéal tadhaill | 4-wire Resistive Touch |
| cineál comhéadan | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| soláthar leictreachas | 3.3V (Typ.) |
| timpeallacht | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
