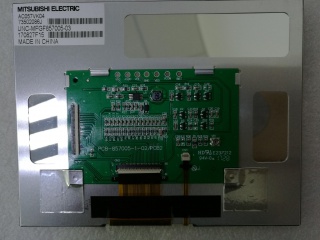

| Uimhir Pháirt | AC057VK04 |
| Branda | Mitsubishi |
| Méid | 5.7 |
| Iarratas | Industrial |
| Rún | 640×480 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 600:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | Parallel |
| branda painéil | Mitsubishi |
| múnla painéil | AC057VK04 |
| méid an phainéil | 5.7" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 640(RGB)×480, VGA, 141PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 115.2(W)×86.4(H) mm |
| oscailt bezel | 118.1(W)×89.3(H) mm |
| méid imlíne | 127(W)×100(H) mm |
| dromchla | Antiglare, Hard coating (2H) |
| gile | 520 cd/m² (Typ.) |
| cóimheas codarsnachta | 600:1 (Typ.) (TM) |
| uillinn féachana | 80/80/80/60 (Typ.)(CR≥10) |
| mód taispeána | TN, Normally White, Transmissive |
| radharc is fearr ar | 6 o'clock |
| am freagartha | 4/12 (Typ.)(Tr/Td) |
| dathanna a thaispeáint | 262K 48% NTSC |
| cineál lampa | WLED , 50K hours , Without Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | 90.0g |
| iarratas | Industrial |
| comhéadan comhartha | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
